> Products > Laser Source > UV Laser > ZG-NS-355-5

ZG Series

ZG-NS-355-5

The new ZG series adopts intra-cavity frequency doubling technology for applications in precision marking processes. With its superb cost performance, it is widely used in the extreme manufacturing field.

Download

Request Information

Features

Small size, light weight and price-competitive

TEM00 mode output

Opto-mechanical integration design

Adjustable repetition rate

Applications

High-end electronic products appearance LOGO

PCB, EPC QR code marking

Metal or non-metal plating removal

Marking of air switches, low-voltage appliances (flame retardant materials)

Food, PVC pipe, pharmaceutical packaging, cable wire (HDPE, PO, PP, etc.) material marking

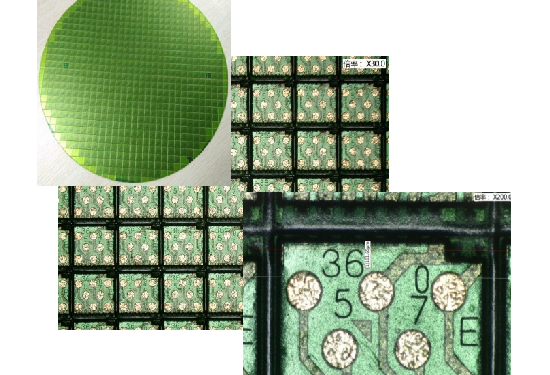

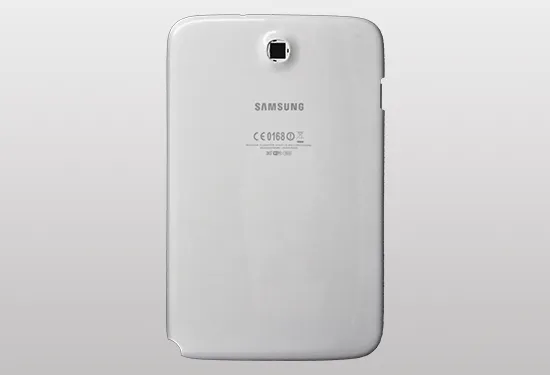

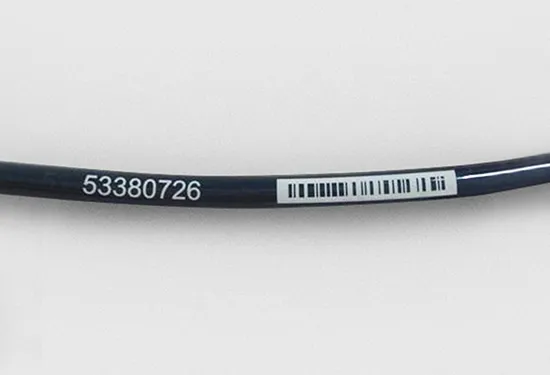

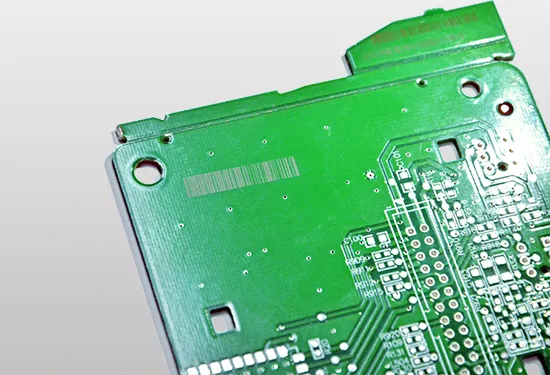

Sample Display

Parameters

ZG-NS-355-5
Output Characteristics
Wavelength	355 nm
Max Power	5W @30 kHz
Repetition Rate	20 kHz~200 kHz
Pulse Width	20 ns - 100 ns
Pulse Energy Stability (rms)	< 3% rms
Power Stability	< 2% rms
Beam Characteristics
Spatial Mode	TEM00
Beam Quality	M2 < 1.2
Polarization Ratio	> 100:1 (horizontal)
Beam Diameter at Exit	1.1 mm ± 0.2 mm
Divergence Full Angle (1/e²)	< 2 mrad
Circularity	> 90%
Beam Pointing Stability	≤ ± 25 μrad/℃
Working Conditions/Environmental Requirements
Power Supply	12VDC±1V; ≥200W switching power supply
Warm-up Time	Standby to ready＜10 minutes; cold start to readiness < 30 minutes
Temperature Range	15~30°C during working hours; 0~50°C during non-working hours
Humidity Range	10~70%, non-condensation
Cooling Requirements	Water cooling, cooling capacity ≥ 200W, accuracy ± 0.5℃, flow rate ≥ 4L/min
Physical Properties
Laser Dimensions	369.5 mm x 160 mm x136 mm (L x W x H)
Laser Weight	11 kg
Water Chiller Dimensions	270 mm x 315 mm x 305 mm (L x W x H)
Water Chiller Weight	15 kg
