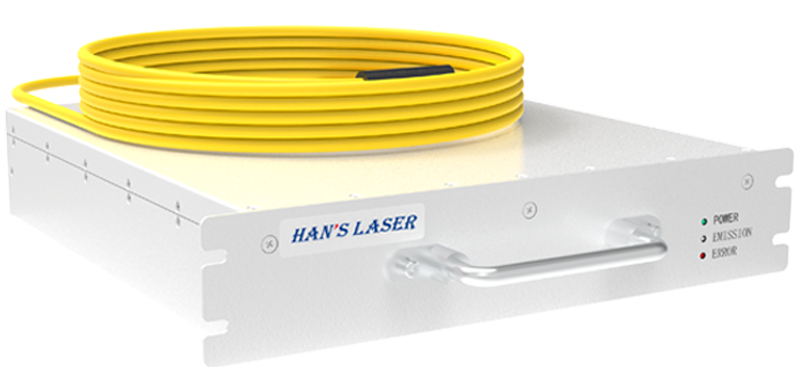

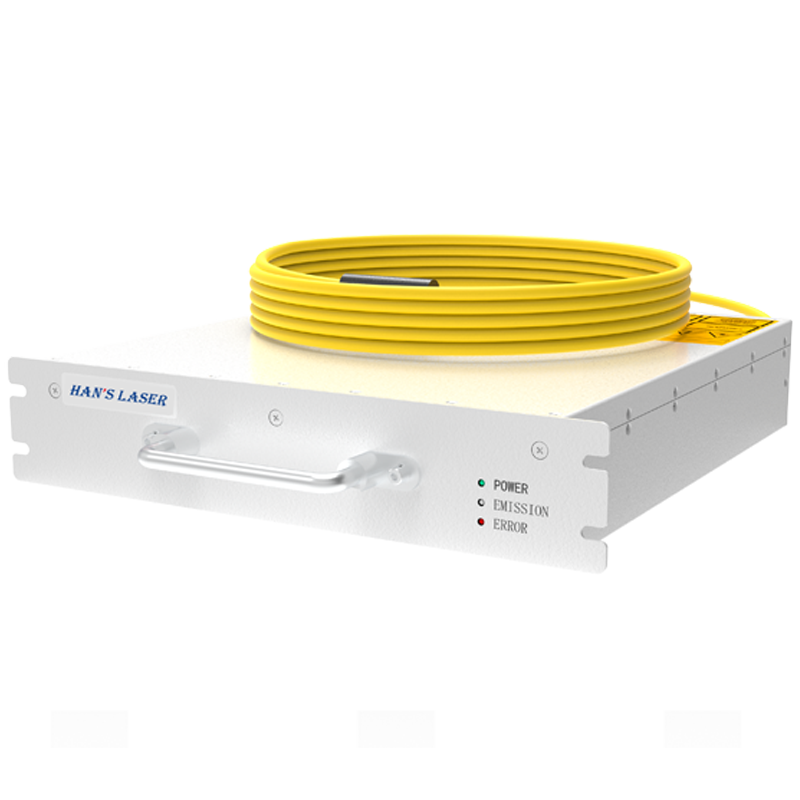

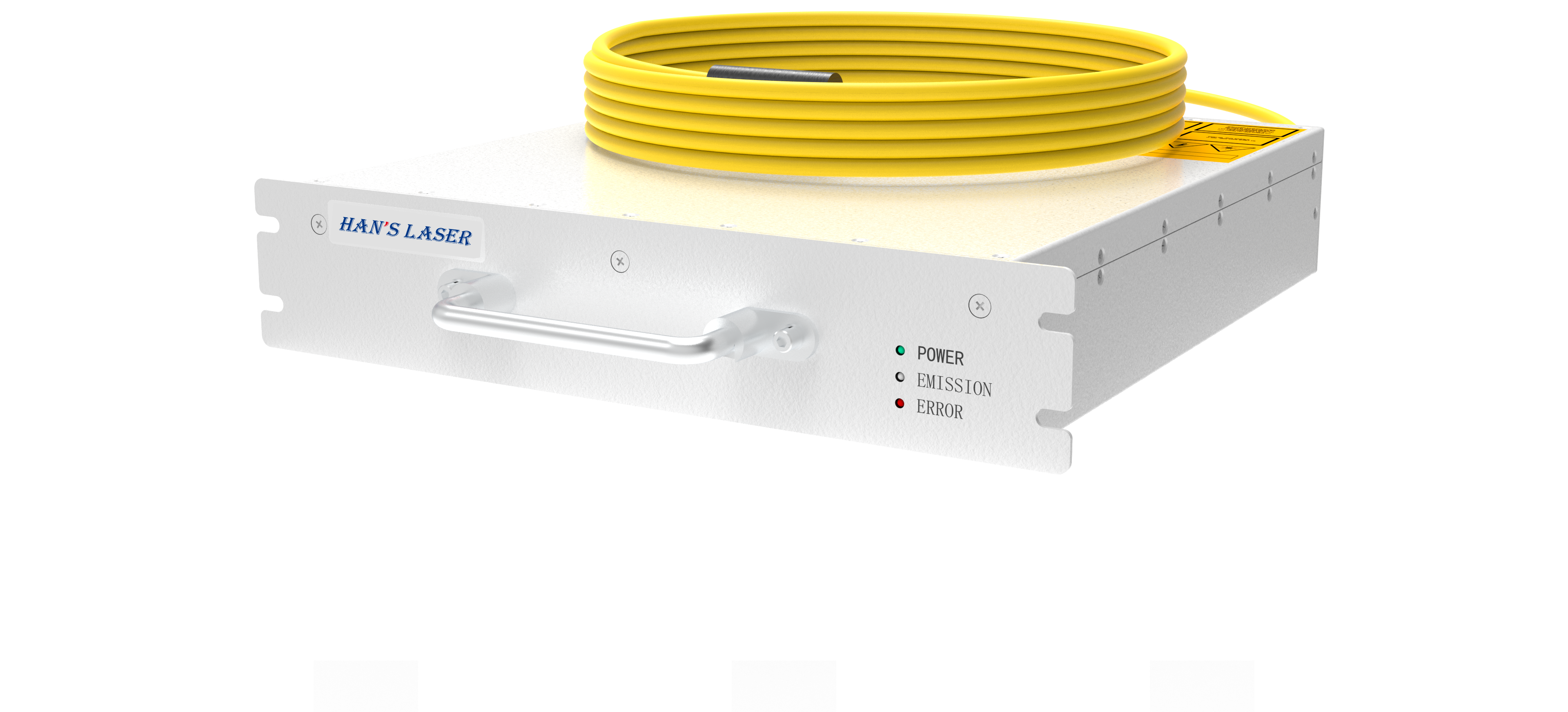

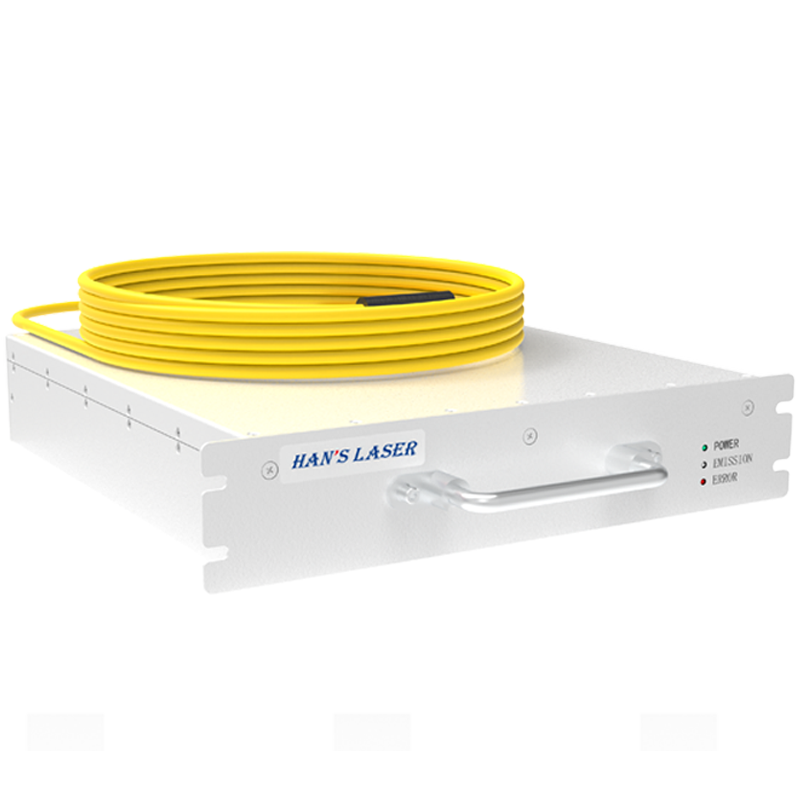

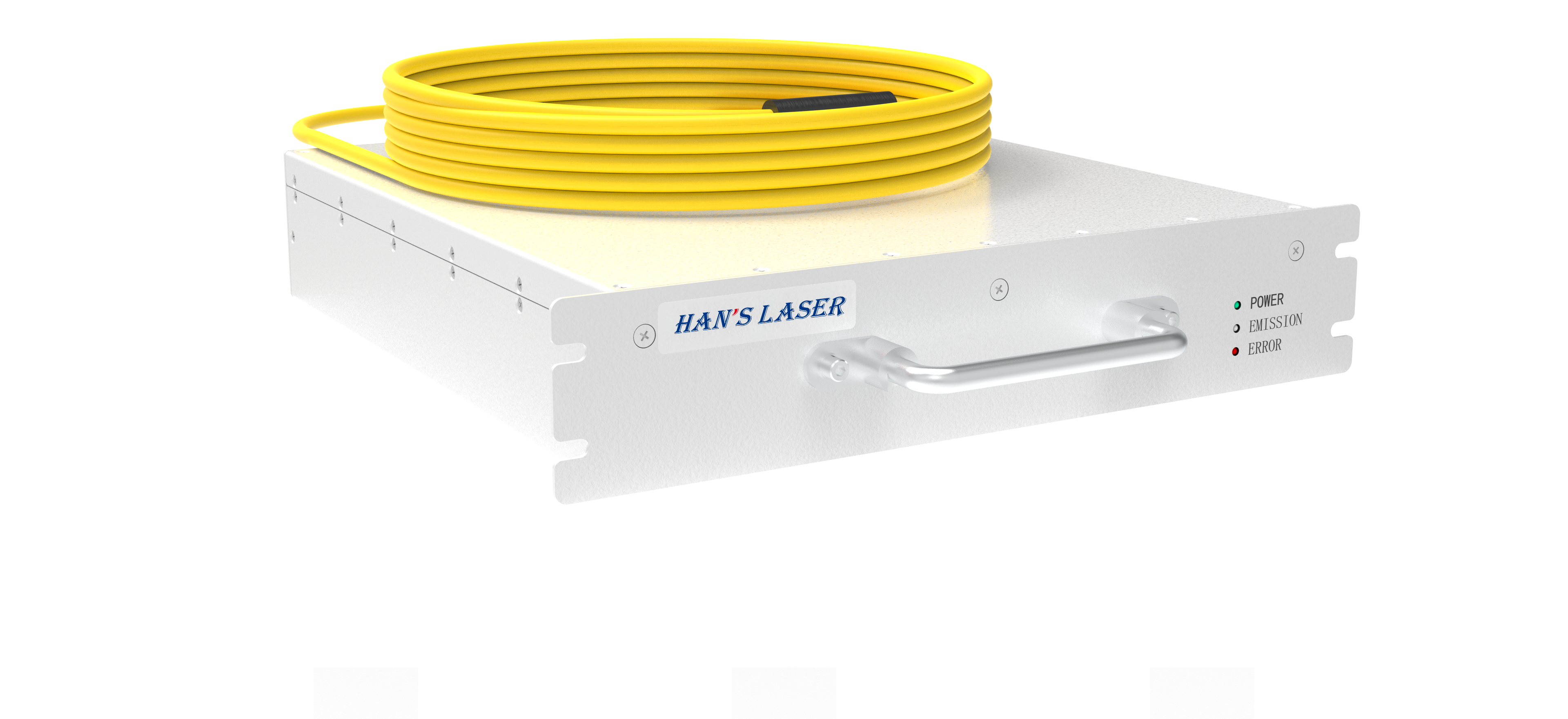

Single Module 500 W

This compact, lightweight device features a high-efficiency photoelectric module, advanced electric control system, microsecond pulse response, and expert-level laser analysis for optimal performance and ease of use.

Download

Request Information

Features

Mainly for the additive manufacturing industry (3D printing)

Power range 500 W to 1000 W (core diameter 14 μm, customizable)

Compact structure, light weight and rich interfaces

Single-mode / Multi-mode adjustable laser spot supports the printing of large structural parts and complex details

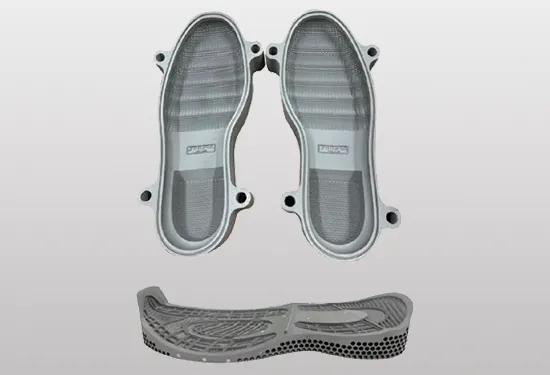

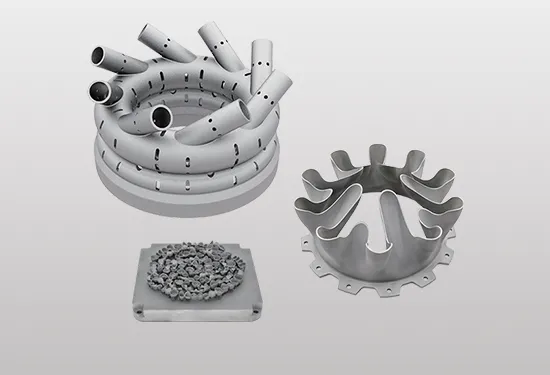

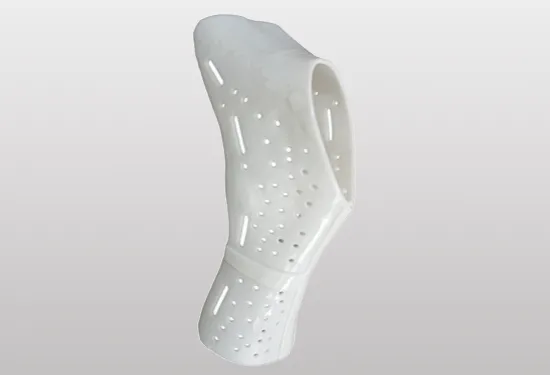

Sample Display

Parameters

CW Fiber Laser - Single Module
Optical Parameters
Power	500 W
Wavelength	1080 nm
3DB Bandwidth	3 ± 1 nm
Output Connector	QBH / QCS
Output Fiber Diameter	14 μm (Customizable)
Output Fiber Length	10 m (Customizable)
Electro-optical Conversion Rate	＞ 40 %
Power Stability	± 1 %
Beam Quality	M² ＜1.1
General Parameters
Operating Voltage	AC 220 V, 50 Hz
Control Mode	External Control Interface / Network Port / Bus Control
Cooling	Water Cooling
Physical Properties
Console Dimensions	482 mm × 512 mm × 122 mm (including handles) (L × W × H)
Laser Weight	< 20 kg
