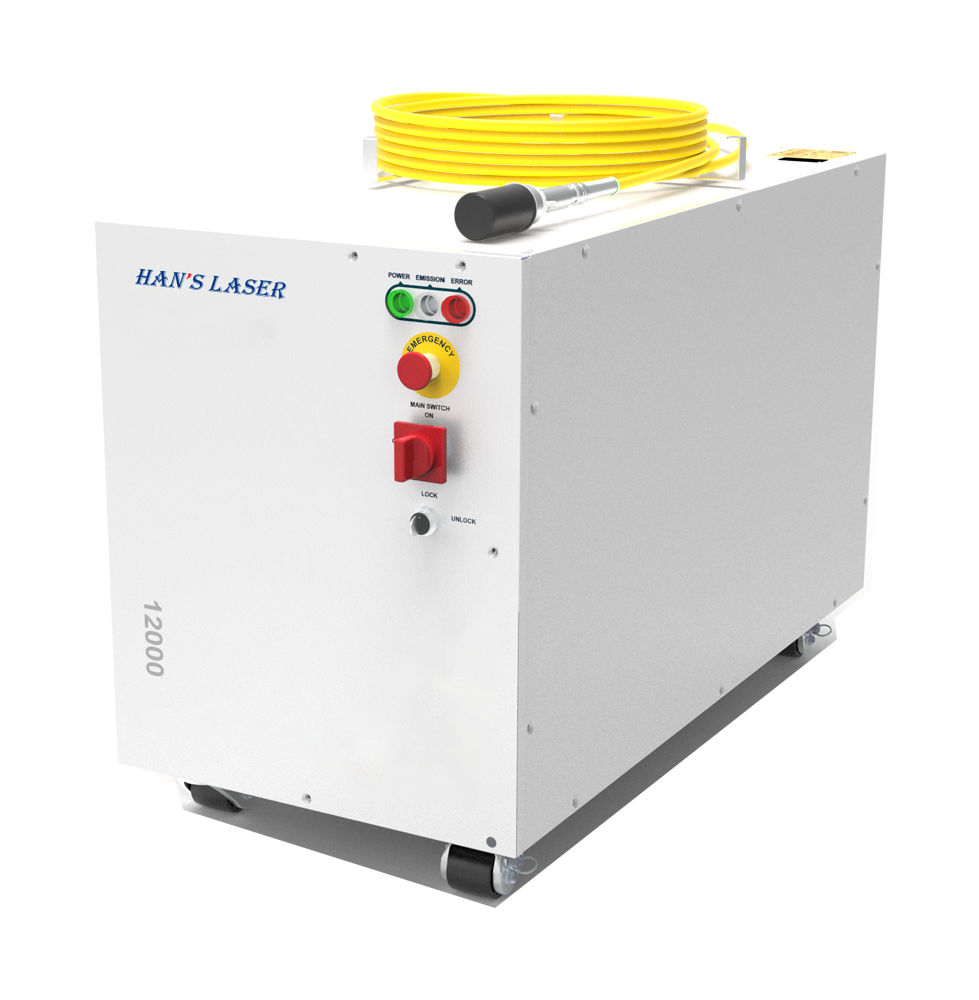

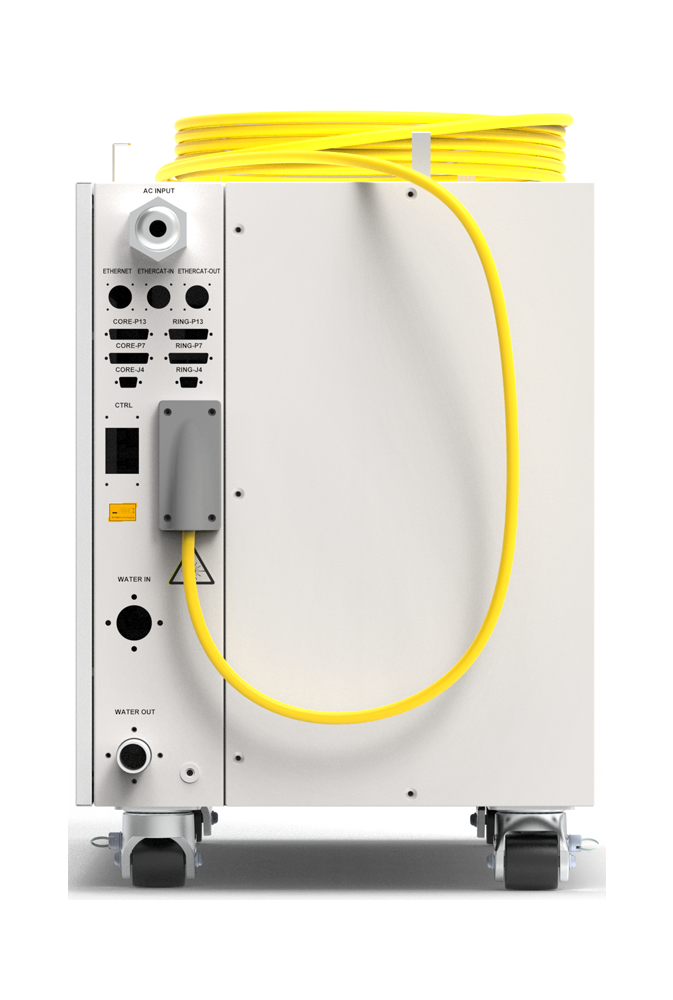

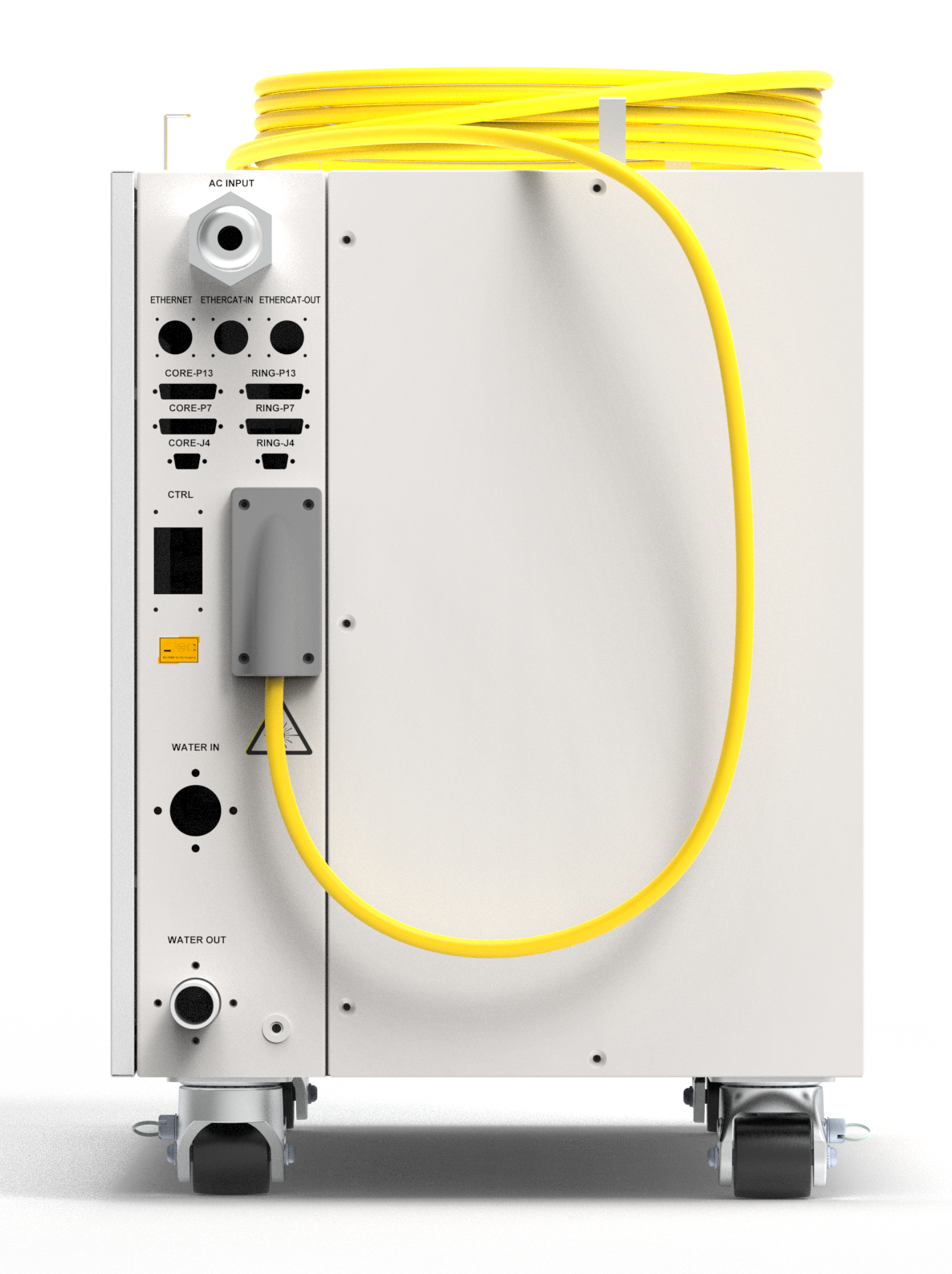

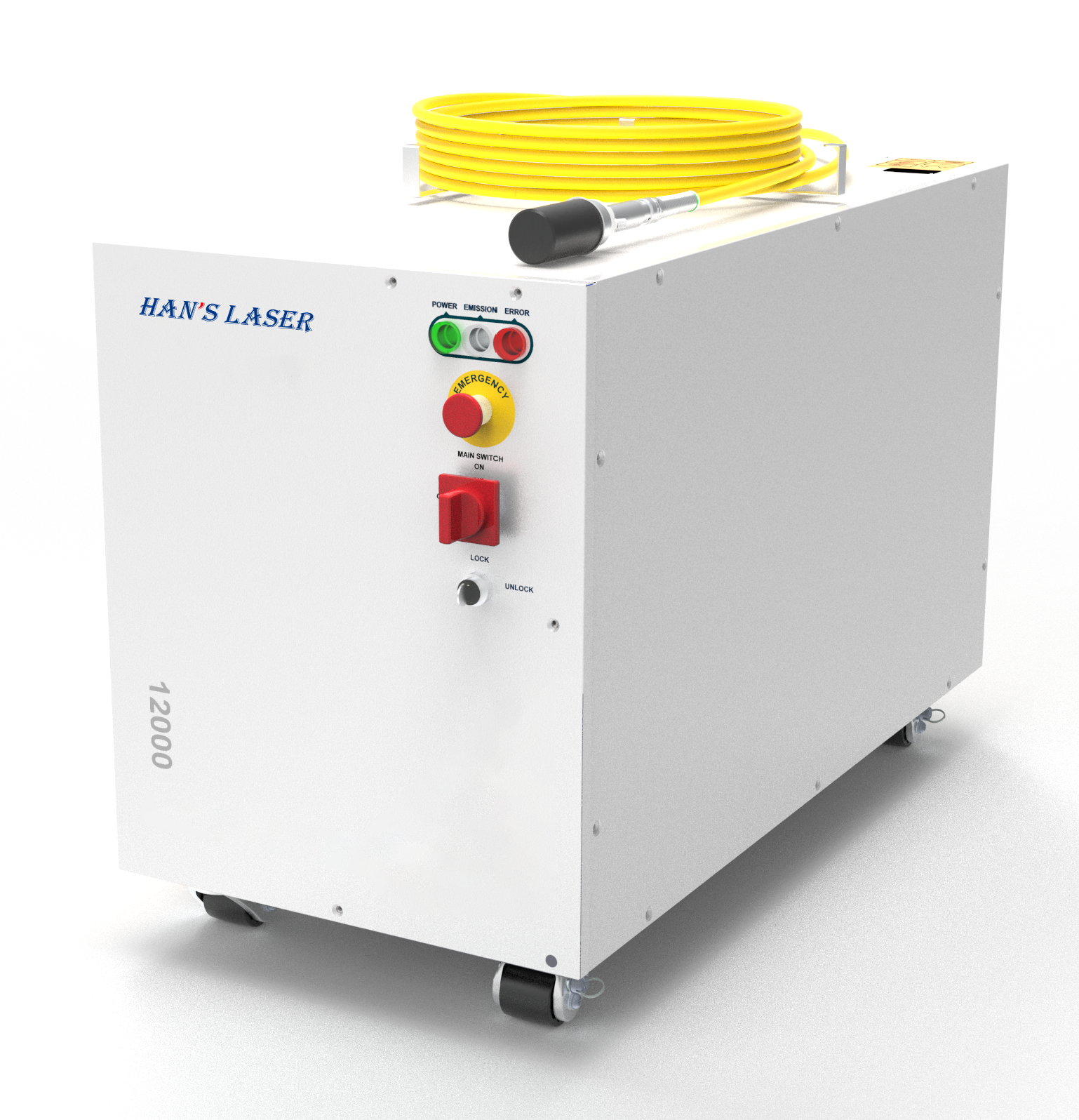

Multi Module 12000 W

This laser features high power stability, > 40 % efficiency, and a smart control system for real-time monitoring and microsecond response, enhancing performance while saving energy.

Download

Request Information

Features

Mainly for cutting, welding, cladding, etc.

Core diameter 100μm, customizable

Great anti-reflection capability, no need to worry about processing high-reflection material

High reliability, long life period, and free-operation maintenance

> 40 % efficiency

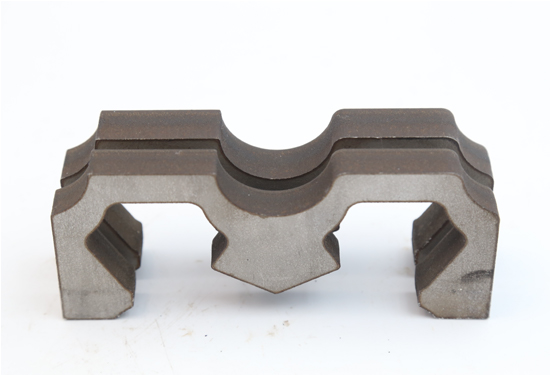

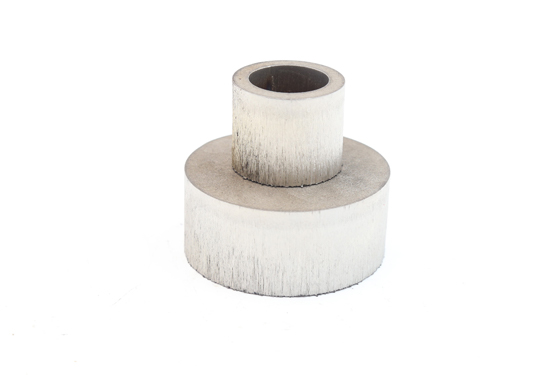

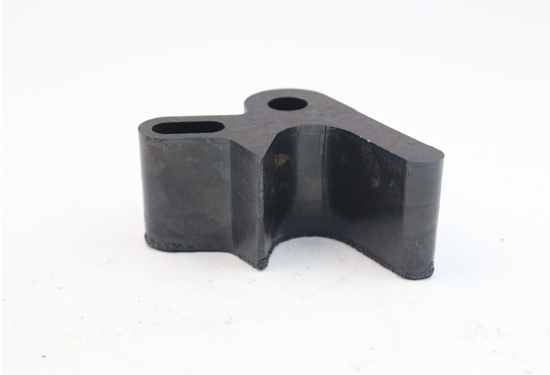

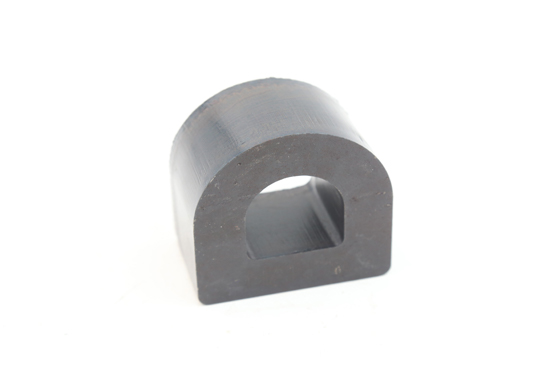

Sample Display

Parameters

Multi Module 12000 W
Optical Parameters
Power	12000 W
Wavelength	1080 nm
3DB Bandwidth	6 ± 1 nm
Output Connector	Q+ / HPC
Output Fiber Diameter	100 μm (Customizable)
Output Fiber Length	25 m (Customizable)
Electro-optical Conversion Rate	＞ 40 %
Power Stability	± 1 %
Beam Quality	BPP ≤ 4
General Parameters
Operating Voltage	360 ~ 440 V, 50/60 Hz
Control Mode	External Control Interface / Network Port / Bus Control
Cooling	Water Cooling
Physical Properties
Console Dimensions	535 mm × 1110 mm × 650 mm (L × W × H)
Laser Weight	< 270 kg
