> Products > Laser Source > Ultrafast Laser > HL-PS-532-60

HL Series Green / UV Picosecond Laser

HL-PS-532-60

This series is widely used in the processing of brittle materials and super-hard materials, and can effectively address the micro-machining bottlenecks in industries such as panel displays, photovoltaics, and semiconductors.

Download

Request Information

Features

Using independently developed seed sources

Selectable burst pulse train quantity and frequency division quantity

POL/POD function

7*24 hours, long-term stable operation

Applications

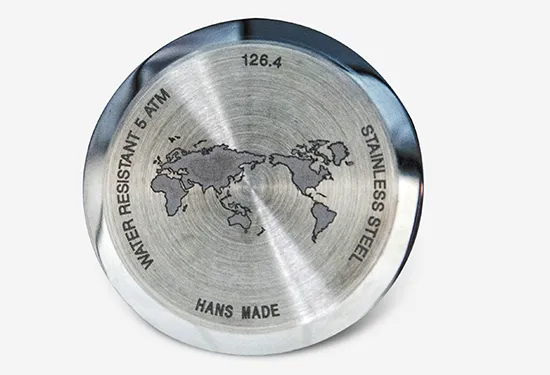

High-end electronic products appearance logo marking

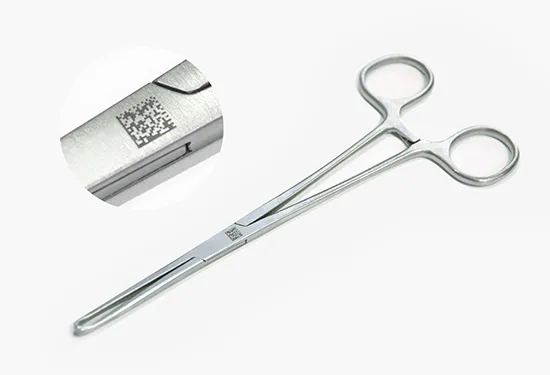

Processing traceability marks with anti-acid corrosion and anti-oxidation functions on metal medical devices

Cutting and drilling on plastics, oxides and organic materials, or removal of surface coatings

Precision forming of superhard materials

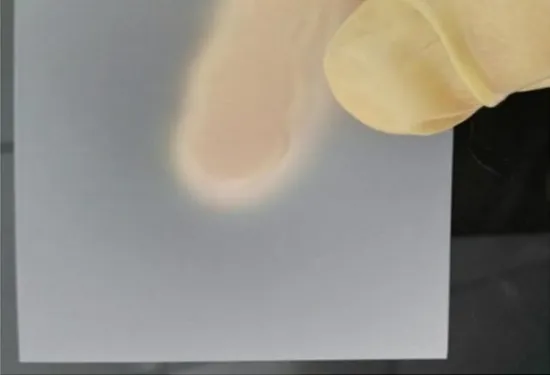

Ultra-precise markings and invisible QR codes finely marked on glass material

Replacing chemical corrosion processing depth on metal materials

Sample Display

Parameters

HL-PS-532-60
Output Characteristics
Wavelength	532 nm
Output Power	60 W
Repetition Rate	Single pulse-4000 kHz
Pulse Width	< 10 ps
Pulse Energy Stability (rms)	< 2% rms
Beam Characteristics
Spatial Mode	TEM00
Beam Quality	M2 < 1.3
Polarization Ratio	> 100:1 (horizontal)
Beam Diameter at Exit	1.6 mm ± 0.2 mm
Divergence Full Angle (1/e²)	< 2 mrad
Circularity	> 90%
Beam Pointing Stability	≤ ± 25 μrad/℃
Working Conditions/Environmental Requirements
Power Supply	100~240V, 50~60Hz
Warm-up Time	Standby to ready＜10 minutes; cold start to readiness < 30 minutes
Temperature Range	15~30°C during working hours; 0~50°C during non-working hours
Humidity Range	10~70%, non-condensation
Cooling Requirements	Water cooling, cooling capacity≥1000W, accuracy±0.1℃, flow rate≥6L/min
Physical Properties
Laser Dimensions	870 mm×450 mm×175 mm (L x W x H)
Laser Weight	85 kg
