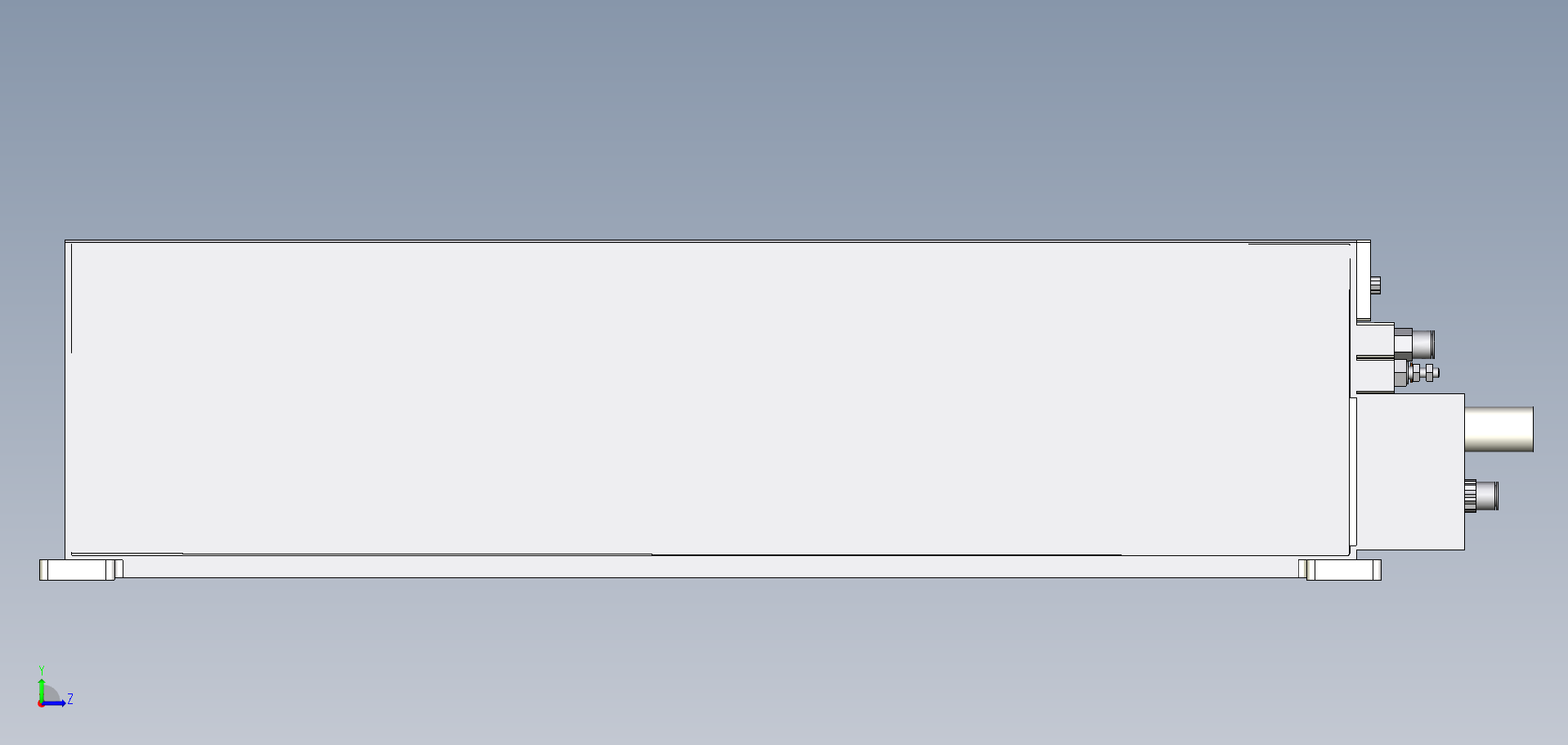

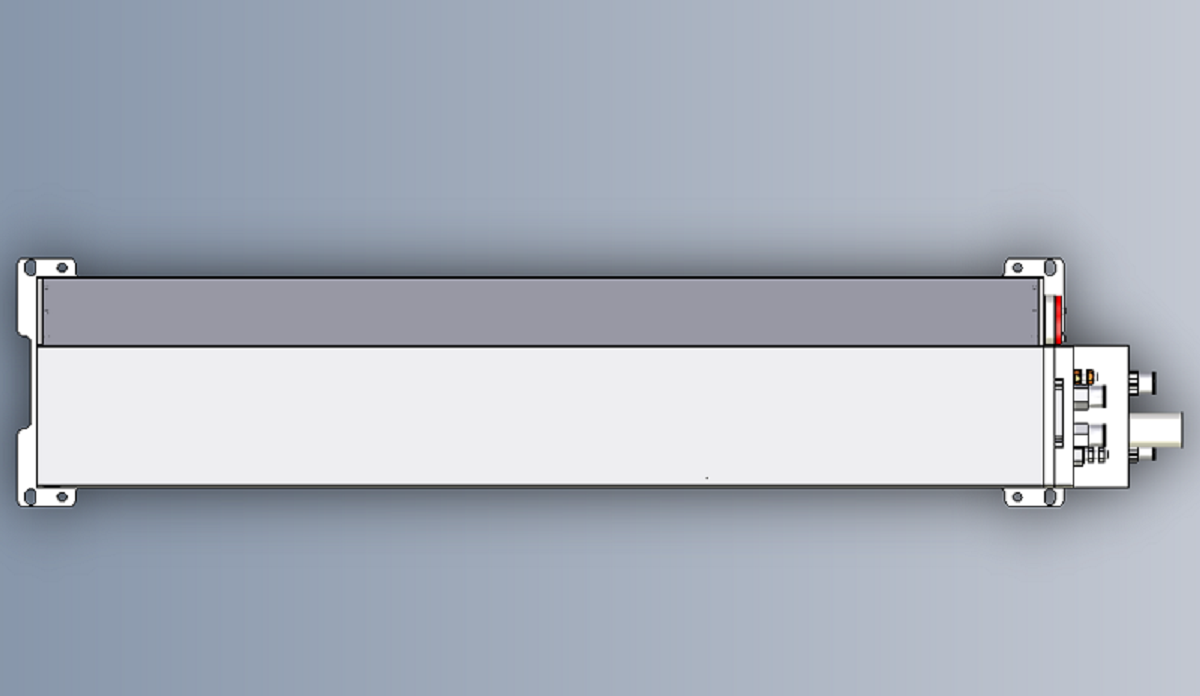

HLD-120

HLD series CO2 lasers provide stable beam output and they are suitable for reliably processing diverse materials.

Download

Request Information

Features

Compact design for seamless system integration

Premium imported core components enabling stable power output

Advanced water-cooling and hermetic sealing technologies

IP66-rated dust-proof construction

Precision machining capability with minimized heat affected zone

Applications

Mobile phone housing processing;

PCB, FPCB micro-hole processing

Plastic precision cutting

Glass cutting and cladding

Non-metal marking: leather, scriptures, etc

Auto parts processing

Logo precision cutting

Parameters

HLD-120
Optical Parameters
Wavelength	10.3 to 10.8 μm
Average Power	110 W
Beam Quality (M²)	< 1.2
Output Power Adjustment Range	10 to 110 W
Max. Effective Peak Power	250 W
Min. Pulse Period	10μs(equivalent 100 kHz)
Pulse Energy Range	5 to 150 mJ
Modulated Pulse Width Range	3 to1000 μs
Duty Cycle	≤ 60%
Output Power Stability	<±6%
Beam Diameter (1/ e²)	6.5 ± 1 mm
Divergence Full Angle	＜2±1 mrad
Beam Ellipticity	0.83 to 1.2
Polarization (Parallel to Mounting Base)	Linear ＞ 100: 1
General Parameters
Input DC Voltage	48 V ±1%
Max. Input DC Current	30 A
Thermal Load	1.5 KW
Min. Cooling Water Flow	4.5(Lpm)
Cooling Water Temperature	10 ℃ to 35 ℃
Cooling Water Temperature Stability	±1.0℃
Cooling Water Pressure (Inlet)	205 to 520 kPa
Physical Properties
Laser Dimensions	898 mm × 192 mm × 204 mm (L×W×H)
Laser Weight	26.5 KG
