> Products > Laser Source > Pulsed Fiber Laser > DZM-1.0-2x200-50-E

M Series

DZM-1.0-2x200-50-E

Engineered with MOPA architecture, this laser provides independent control of pulse width and repetition rate. This flexibility supports superior performance in precision marking, micro-processing, and challenging material applications.

Download

Request Information

Features

Anti-reflection

Rugged Design

Adjustable first pulse

Adjustable pulse width from 2 ns - 200 ns

Adjustable pulse repitition rate 1.6 kHz - 3000 kHz

Applications

Flying laser marking

Thin metal sheet drilling

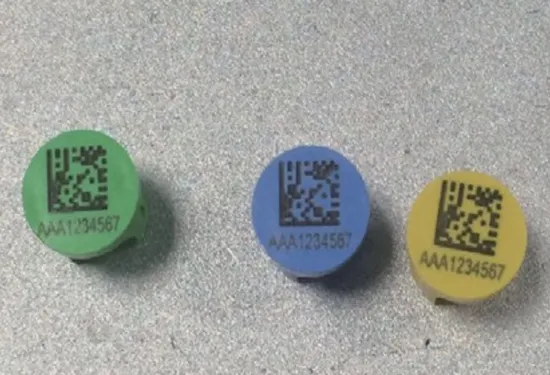

Product QR code traceability

Paint and plating removal, cleaning

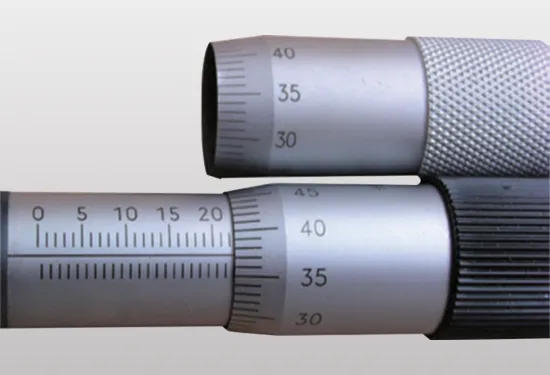

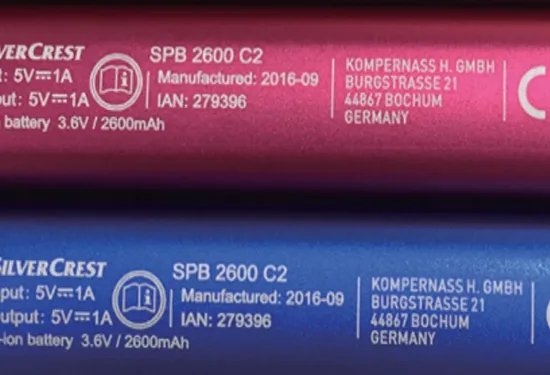

Laser marking and engraving on metals and non-metals

Sample Display

Parameters

DZM-1.0-2x200-5-E
Optical Parameters
Wavelength	1064 nm
Output Power	50 W
Max. Pulse Energy	1 mJ
Max. Peak Pulse Power	10 kW
Pulse-to-Pulse Stability (rms)	＜3% rms @ 50 kHz
Repetition Rate	1.6 kHz - 3000 kHz
Polarization Ratio	Random
Pulse Width	2 - 200 ns
Circularity	＞85%
Beam Quality (M²)	1.1 - 1.5
Beam Diameter at Exit	6 - 9 mm
Aiming Beam	Standard
Power Instability	＜1.5%
General Parameters
Power Supply	24 V
Warm-up Time	10 s
Fiber Length	2.5 m（Customizable）
Operation Temperature	0 ℃ - 40 ℃
Storage Temperature	-10 ℃ ~ 60 ℃
Relative Humidity	10 % - 95 %, non-condensing
Cooling Requirement	Air Cooling
Service Life (at standard conditions)	24-month Free Warranty
Physical Properties
Laser Dimensions	252 mm × 215 mm × 74 mm (L × W × H)
Laser Weight	5.6 kg
